Knee Ankle Foot Orthosis

Specification of Knee Ankle Foot Orthosis

Material: Medical-Grade Polypropylene (PP), Carbon Fiber, Metal Components
Shell Material: Polypropylene (PP) / Laminated Carbon Fiber
Product Type: Custom-Made Lower Limb Orthosis
Support Area: Knee, Ankle & Foot
Fit: Anatomical Custom Fit
Suspension: Adjustable Velcro Straps & Buckles
Maximum Body Weight: 110 kg

Order Now

Description of Knee Ankle Foot Orthotic

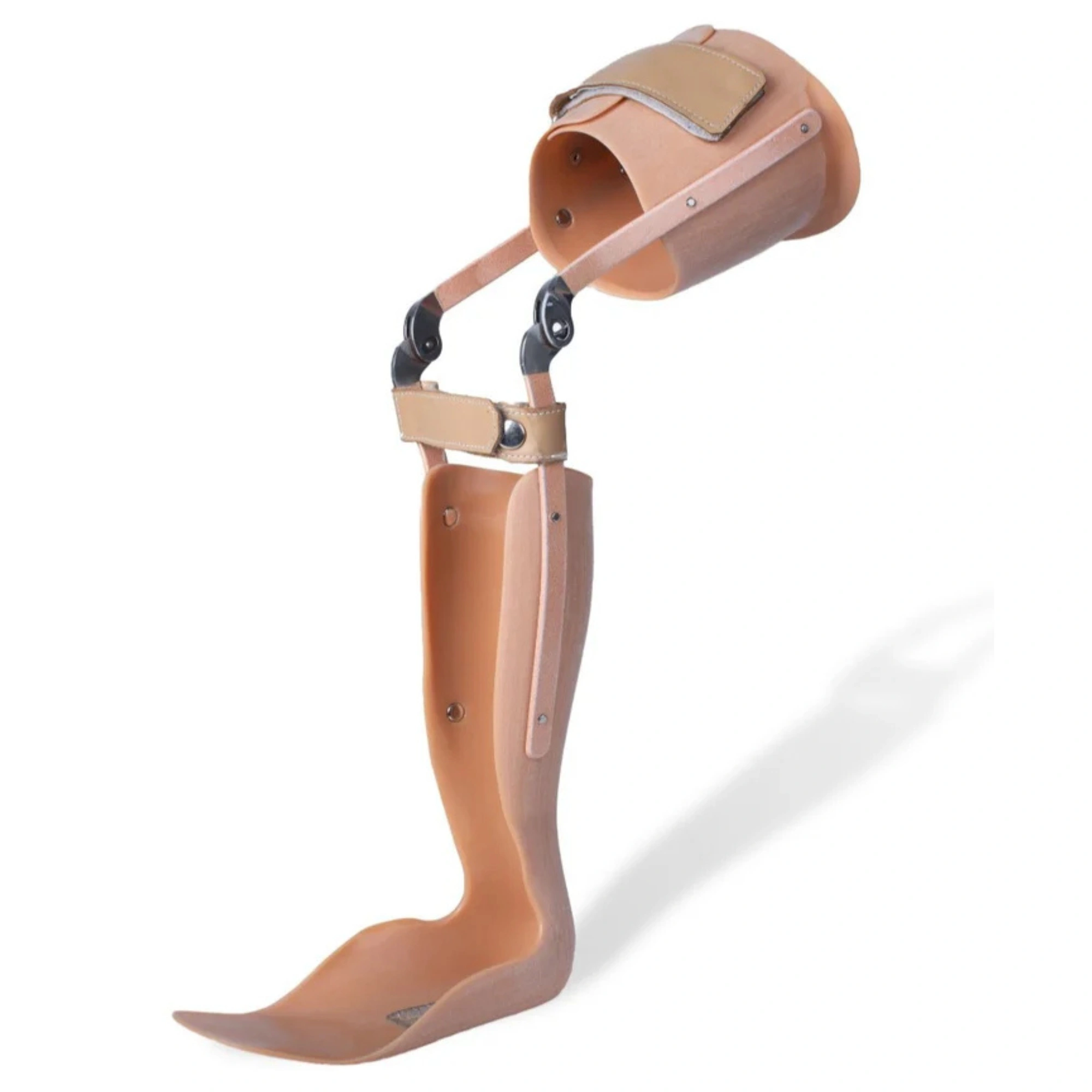

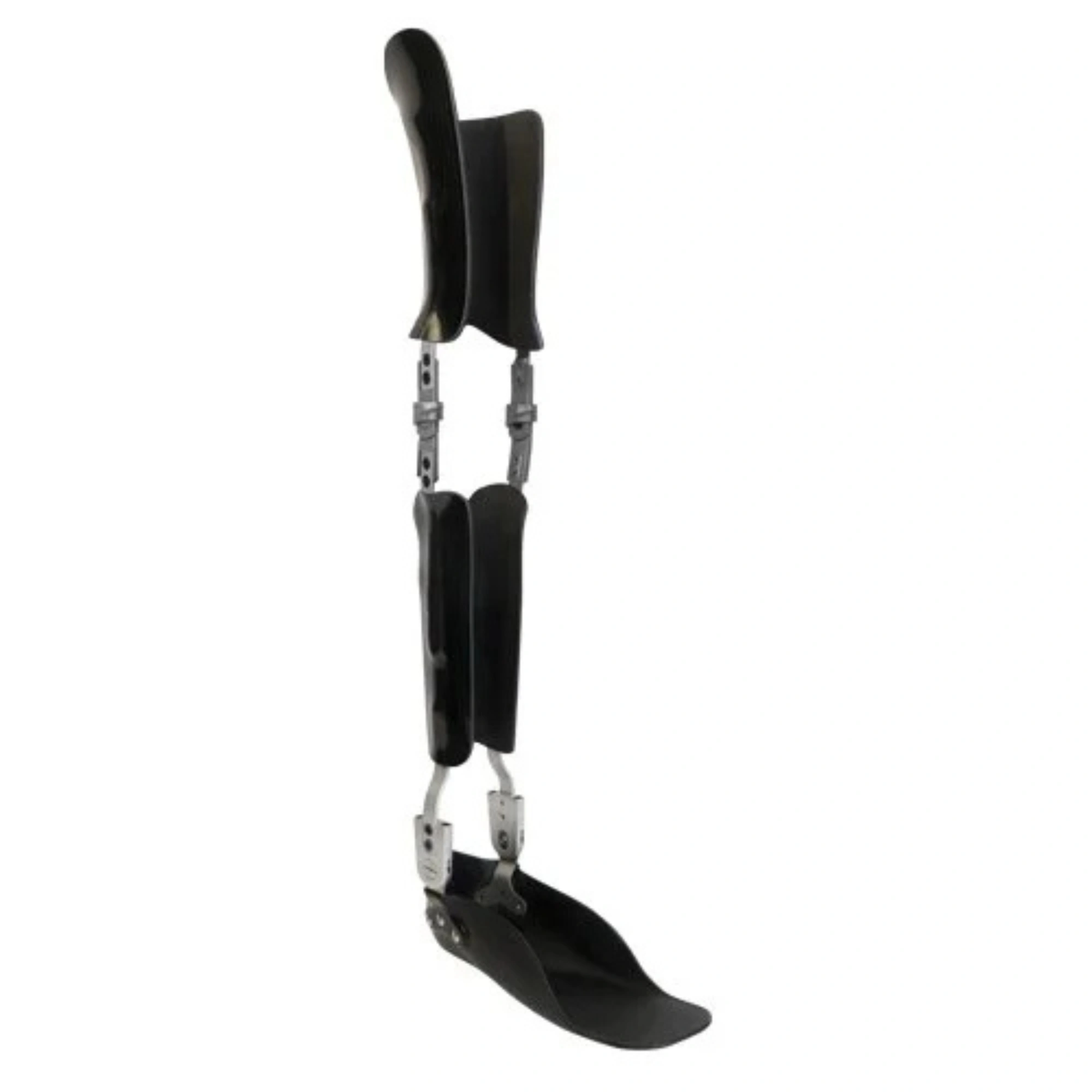

The Knee Ankle Foot Orthosis (KAFO) is a custom-made lower limb orthotic device designed to provide comprehensive support, stability, and alignment to the knee, ankle, and foot. It is prescribed for individuals with muscle weakness, paralysis, ligament instability, neuromuscular disorders, or lower limb deformities that affect standing and walking.

Manufactured using high-quality medical-grade thermoplastic, carbon fiber, or metal components, the custom-made KAFO is individually fabricated from precise measurements or casts to ensure an anatomical fit and maximum comfort. It helps improve gait, enhances stability during the stance phase, prevents abnormal joint movement, and promotes greater independence in daily activities. Multiple knee joint mechanisms-including drop lock, spring lock, bail lock, stance-control, and offset knee joints can be incorporated based on the patient’s clinical needs.

Key Features of Knee Ankle Foot Orthosis

Stabilizes the knee, ankle, and foot during standing and walking.
Improves gait pattern and walking efficiency.
Available with multiple knee joint options to suit clinical requirements.
High-quality thermoplastic or carbon fiber shell for strength and comfort.
Adjustable straps provide secure suspension and easy application.
Helps prevent knee buckling and abnormal joint movement.
Modular components allow easy servicing and replacement.
Comfortable for prolonged daily wear with padded support.

Applications	Benefits
Post-polio residual paralysis Muscular dystrophy Knee instability and ligament weakness Lower limb muscle weakness knee hyperextension	Provides excellent stability to the knee, ankle, and foot. Improves standing balance and walking confidence. Prevents knee collapse during the stance phase. Reduces the risk of falls and injuries. Supports weakened muscles and joints.
